The IDF Import feature of PCB-Investigator offers the ability to easily exchange and verify data between E-CAD and M-CAD systems.

This industry-wide format provides a consistent data foundation to avoid unnecessary prototypes, and support for various formats such as ODB++, GenCAD 1.4, Gerber 274x, and DXF allows developers to convert and manipulate imported data to their desired formats.

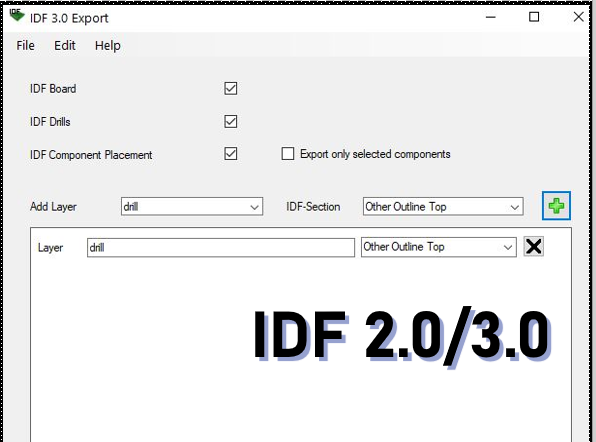

By importing and exporting IDF 2.0/3.0, developers can utilize the analysis tools of the plug-in, or the basic functions of PCB-Investigator to streamline their workflow and improve their PCB development process.
